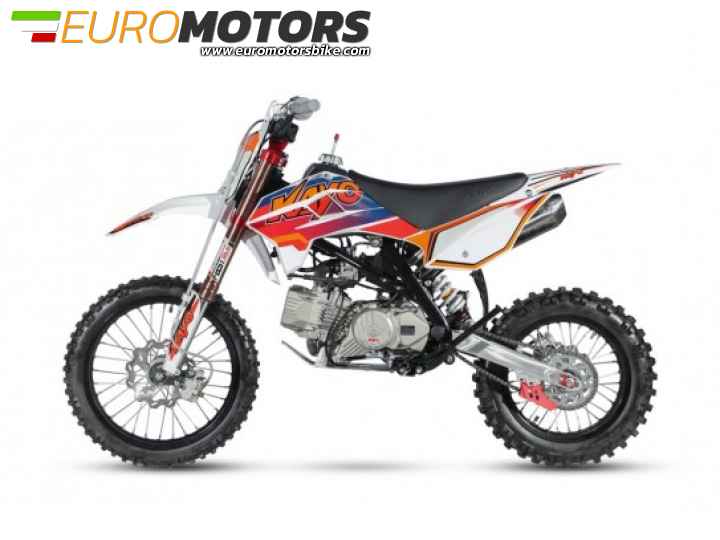

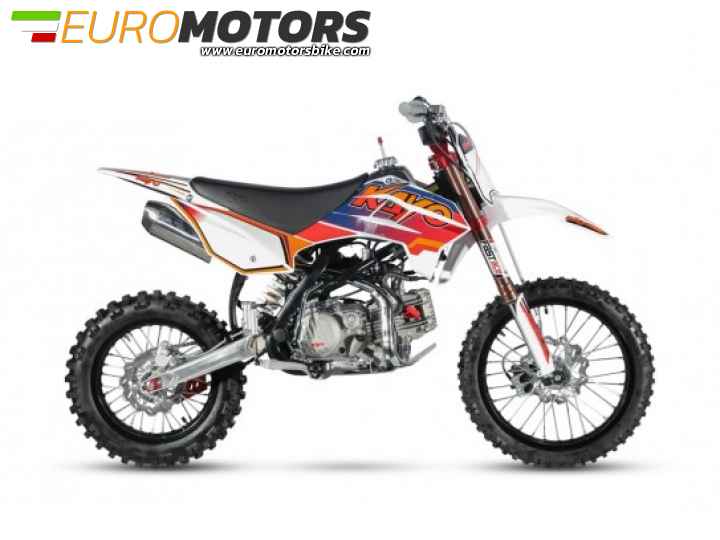

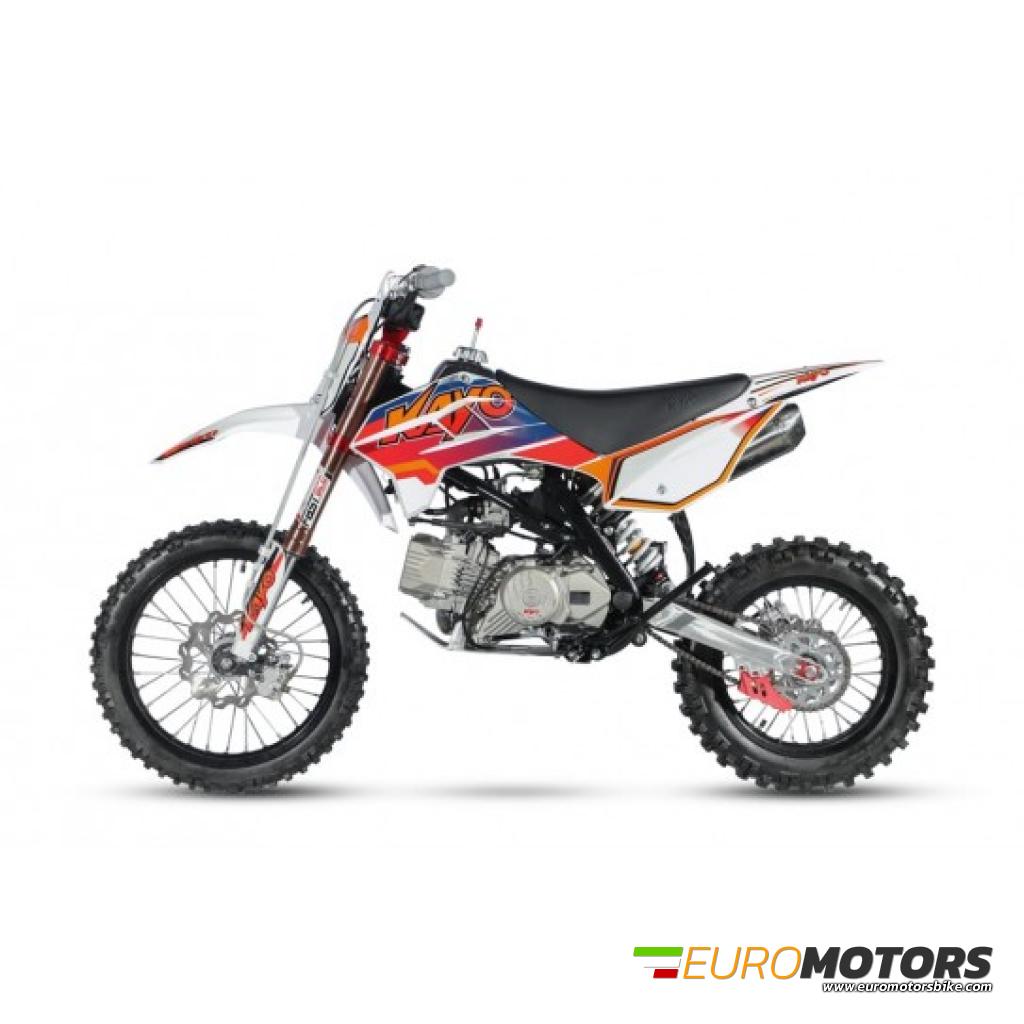

PIT BIKE CROSS KAYO TT190R RACING 17-14

Prezzo
€ 2569,00

Interessato a questo articolo?
Aggiungi

Descrizione

PARTS

SPECIFICATIONS

1

Engine

Engine Type

Single-cylinder, 4-valve, Oil cooling, Manual, 4 gears

Displacement

190cc

Bore*Stroke

62mm*56mm

Compression Ratio

10.3:1

Max. Power

11.2/9000 kw/rpm

Max. Torque

13.8/7500 N.m/r/min

Fuel System

Standard Carburetor

Starting

Kick

Transmission

Chain (16T-41T 428H#)

Ignition

CDI

2

Chasis

Frame

Professional design and processed by KAYO

Front shock

730mm, reverse, Adjustable FASTACE

Rear shock

360mm Adjustable DNM

Front Braking

Disc Brake

Rear Braking

Disc Brake

Front Wheel Rim

Aluminium 1.6*17

Rear Wheel Rim

Aluminium 1.85*14

Front Tyre

17" 70/100-17

Rear Tyre

14" 90/100-14

3

Dimensions & Capacities

Vehicle Size

1765*770*1115mm

Wheelbase

1205mm

Seat Height

850mm

Ground Clearance

275mm

Dry Weight

73kg

Fuel Capacity

5.5 L

Packing Size

1560*380*735 mm
